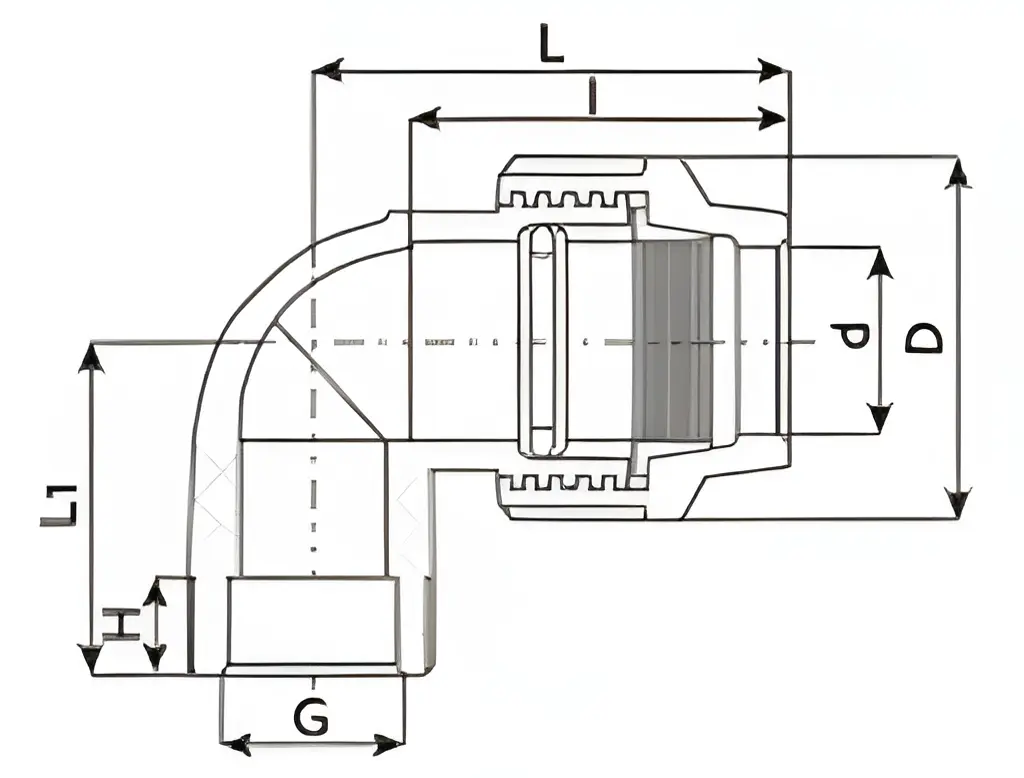

Polyprpylene Compression Female Threaded Elbow
Polyprpylene Compression Female Threaded Elbow are made from the raw material and are available in size from 20mm o.d. x 1\2 n.b. to110mm o.d. x 4 n.b. this fittings is designed to connect a lengths of Polyprpylene (PE) pipe to a BSP male Threaded fittings which can be done assembly and installation take place without need of any adhesives or welding material.
| CODE NO | SIZE | PCS/CTN | PCS WEIGHT-KGM | Carton Size |
|---|---|---|---|---|
| 5008025 | 25x3/4 | 240 | 0.070 | 50x34x28 |
| 5008026 | 25x1 | 240 | 0.078 | 50x34x28 |
| 5008032 | 32x1 | 130 | 0.124 | 50x34x28 |
| 5008040 | 40x1-1/4 | 90 | 0.110 | 50x34x28 |
| 5008050 | 50x1-1/2 | 48 | 0.307 | 50x34x28 |
| 5008063 | 63x2 | 20 | 0.776 | 50x34x28 |
| 5008075 | 75x2-1/2 | 21 | 0.700 | 50x34x28 |
| 5008090 | 90x3 | 8 | 1.285 | 50x34x28 |
| 5008110 | 110x4 | 6 | 1.860 | 50x34x28 |
